Mobil Delvac

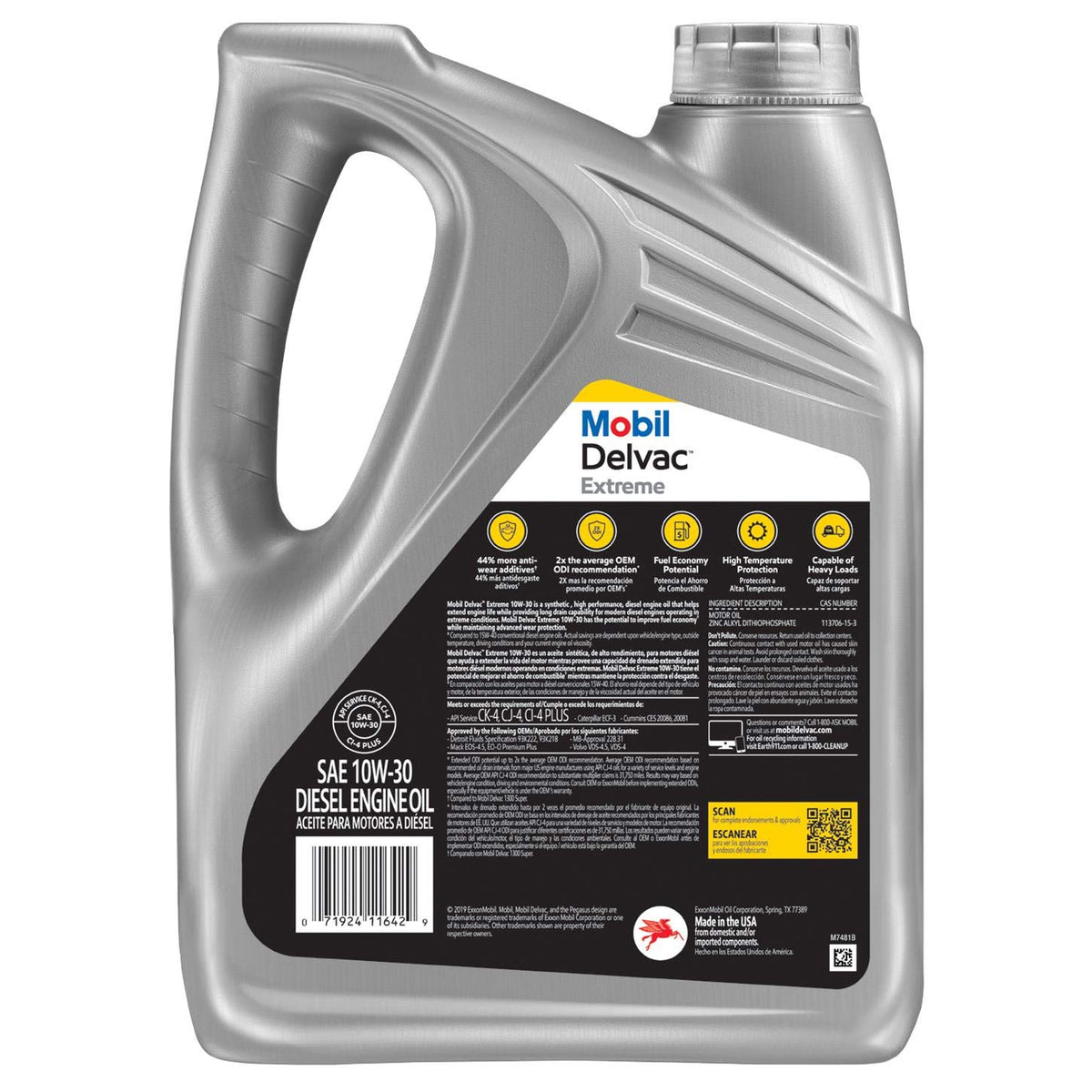

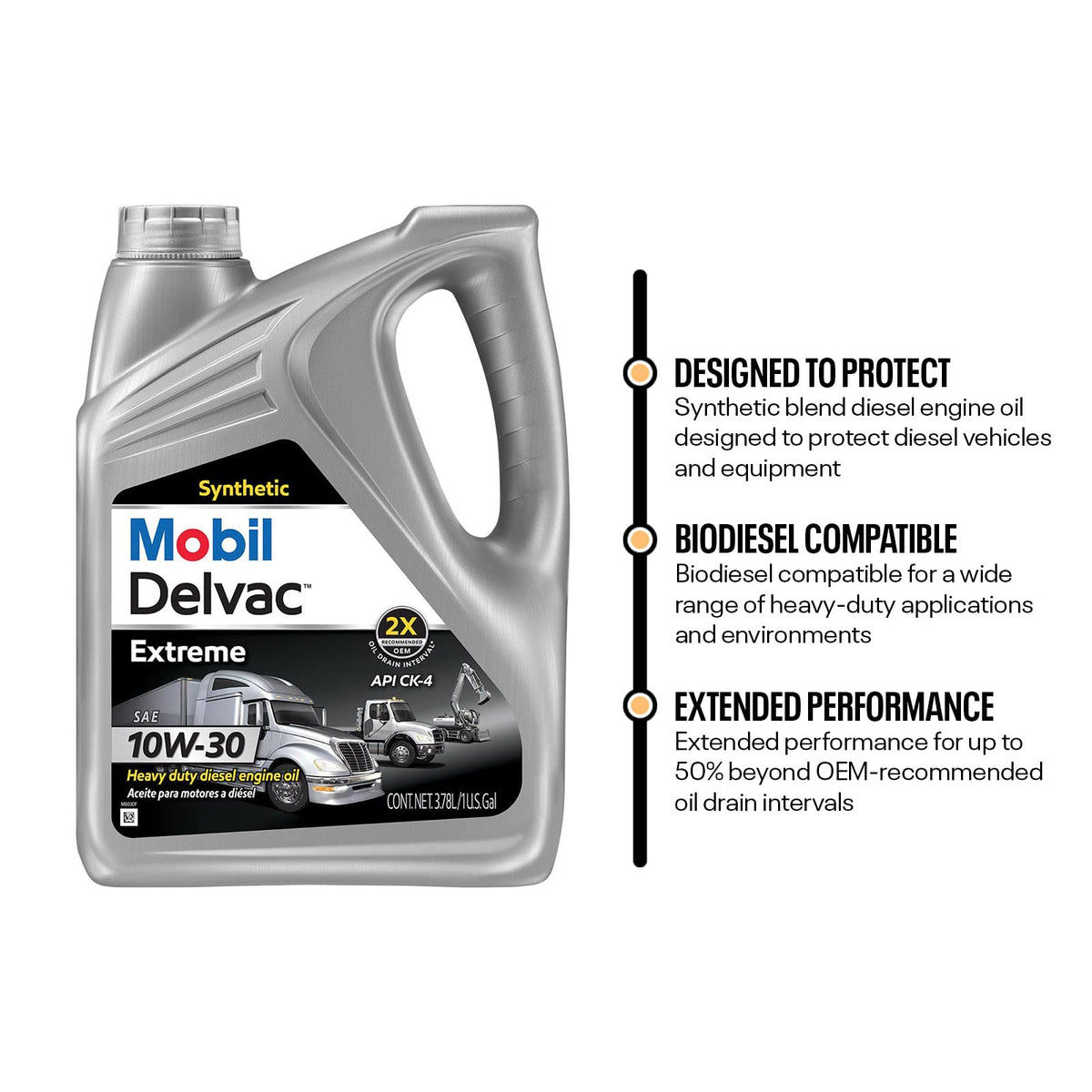

Mobil Delvac Extreme 10W-30 Full Synthetic Diesel Engine Oil - 1 Gallon, Case of 4 (122454)
Mobil Delvac Extreme 10W-30 Full Synthetic Diesel Engine Oil - 1 Gallon, Case of 4 (122454)
Pay by credit or debit card at checkout — no account needed.
Enter your card on our secure checkout page. Visa, Mastercard, American Express and Discover accepted. Apple Pay and Google Pay are there too for one-tap checkout.
Rather not order online? Call (626) 269-7689 and we will take your card over the phone.
Couldn't load pickup availability
Mobil sells two full synthetic Delvac Extreme 10W-30 oils. Delvac Extreme 10W-30 (this one) is an API CK-4 oil with an HTHS viscosity of 3.6 mPa·s. Delvac Extreme FE 10W-30 is an API FA-4 oil (HTHS 3.1) approved to Detroit DFS 93K223. If your engine calls for FA-4 or 93K223, this is not that oil.
ExxonMobil describes Mobil Delvac™ Extreme as “premium synthetic, high performance, diesel engine oils” built for long drains and extreme operating conditions. This is the 10W-30 grade, rated to API CK-4.
Compared with Delvac 1300 Super, Mobil says it has “46 percent more antioxidant and 44 percent more anti-wear additive”, and that the 10W-30 “has the potential to improve fuel economy” compared with an SAE 15W-40 conventional engine oil.

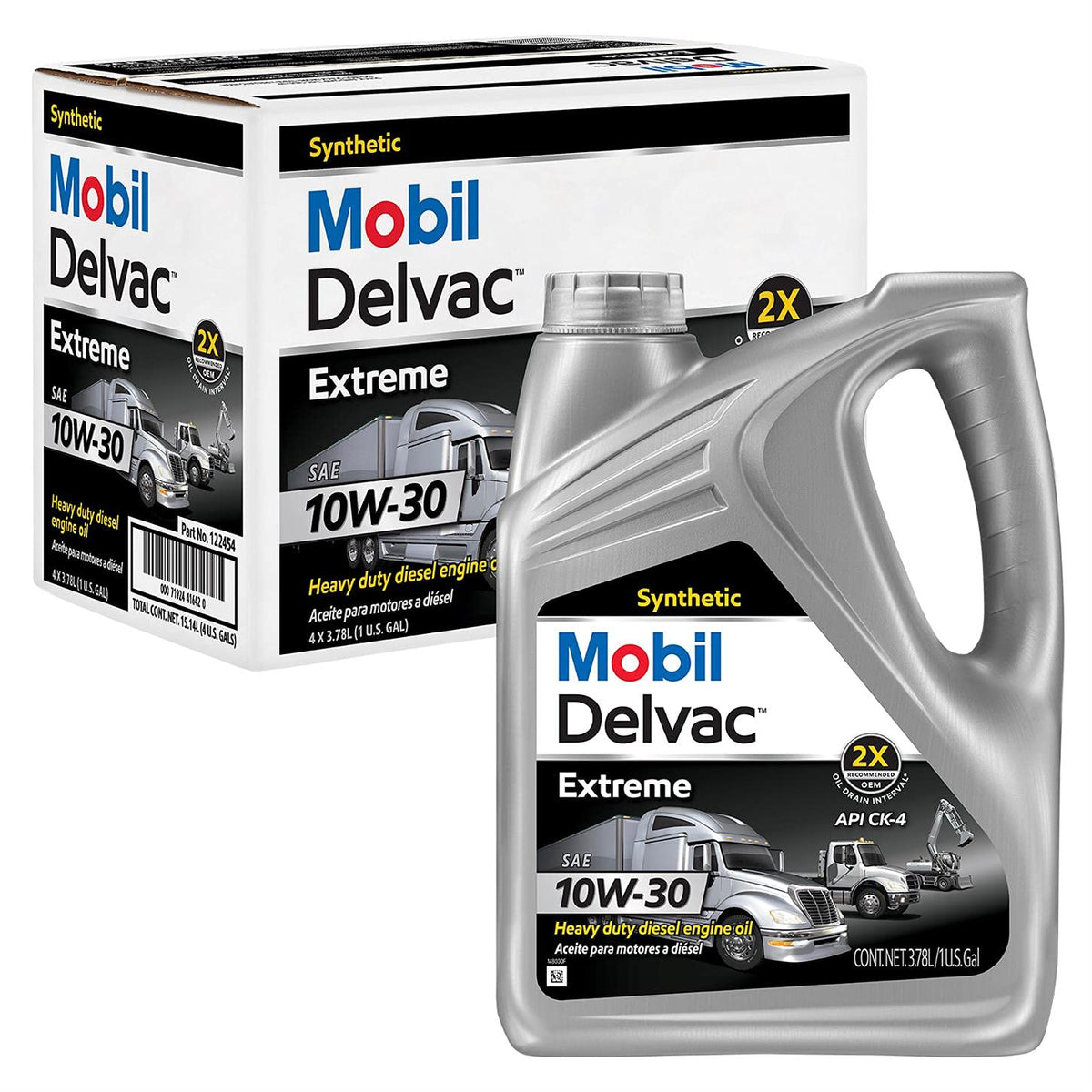

A case of four sealed 1-gallon jugs, Mobil part number 122454 — 4 gallons in total.
Mobil recommends it for modern diesel engines with EGR, DPFs and DOCs; naturally aspirated and turbocharged diesels; on-highway light and heavy-duty trucking including mixed fleets; and off-highway mining, construction, quarrying and agriculture.
*ExxonMobil bases the multiplier on US engine manufacturers’ average oil drain recommendations and adds: “Consult OEM or ExxonMobil before implementing extended ODIs, especially if the equipment/vehicle is under warranty.” We will not turn that into a mileage figure, because ExxonMobil does not.
Mobil separates a formal approval from a statement that an oil meets or exceeds the requirements of a specification, and from a recommendation. We reproduce the distinction exactly as they publish it, because the three are not the same thing.
| ExxonMobil's wording | Listed for Delvac Extreme 10W-30 |
| Has the following approvals | Cummins CES 20081 • Cummins CES 20086 • DTFR 15C100 • Detroit Fluids Specification 93K218 • Detroit Fluids Specification 93K222 • DQC II-18 LA • Ford WSS-M2C171-F1 • Mack EO-O Premium Plus • Mack EOS-4.5 • MAN M 3775 • Renault Trucks RLD-3 • Volvo VDS-3 • Volvo VDS-4 • Volvo VDS-4.5 |
| Meets or exceeds the requirements of | API CK-4, CJ-4, CI-4 PLUS, CI-4, CH-4 • ACEA E11, E7 • JASO DH-2 • Caterpillar ECF-3 |
| Recommended for use in applications requiring | API CF • API CG-4 • MAN M 3575 |
Mobil sells three heavy-duty diesel oils that sit side by side on the shelf. This one is the full synthetic Extreme, in 10W-30.
| Product | Base oil | Drain claim (ExxonMobil) |
| Mobil Delvac™ 1300 Super 15W-40 / 10W-30 | Synthetic blend | Up to 1.5X the average OEM drain recommendation* |
| Mobil Delvac™ Extreme 15W-40 / 10W-30 — this oil | Full synthetic | Up to 2X the average OEM drain recommendation* |
| Mobil Delvac 1™ ESP 5W-40 | Full synthetic | Mobil cites “long drain capability”; no multiplier published |
This is an API CK-4 oil. Its published HTHS viscosity of 3.6 mPa·s is above the FA-4 range, which is why it carries CK-4 rather than FA-4 even though it is a 10W-30.
| SAE grade | 10W-30 |
| Kinematic viscosity @ 40 °C | 81.1 mm²/s |
| Kinematic viscosity @ 100 °C | 11.8 mm²/s |
| Viscosity index | 140 |
| HTHS viscosity @ 150 °C | 3.6 mPa·s |
| Cold cranking viscosity @ −25 °C | 6,600 mPa·s |
| MRV viscosity @ −30 °C | 18,400 mPa·s |
| Sulfated ash | 1.0 mass% |
| Total base number | 10.3 mgKOH/g |
| Pour point | −42 °C |
| Flash point (COC) | 219 °C |
| Density @ 15 °C | 0.867 g/mL |
| Manufacturer part number | 122454 |
Typical properties are ExxonMobil published values and represent normal production tolerance. They are not a specification.
