PurolatorTECH TL10241 Oil Filter, Replaces PH3614 - Ford Focus, Fusion, Escape, Mazda MZR - Case of 12
PurolatorTECH TL10241 Oil Filter, Replaces PH3614 - Ford Focus, Fusion, Escape, Mazda MZR - Case of 12
Pay by credit or debit card — no PayPal account needed.
Choose Pay with PayPal, then pick the debit or credit card option on the next screen. PayPal will offer to create an account at the end — you can decline it and your order still goes through.
Rather not order online? Call (626) 269-7689 and we will take your card over the phone.
Couldn't load pickup availability
This is the FRAM PH3614 / WIX 51348 / Motorcraft FL-910S size: the Ford Duratec and 2.0–2.3L EcoBoost four-cylinders, the Mazda MZR engines they share, and the older Toyota and Lexus V6 and V8. It is not a Honda filter and it is not the Ford V6 / V8 filter — those are TL14610 and TL22500. Same 3/4-16 thread as the taller FL-400S can, so check height before you buy twelve.

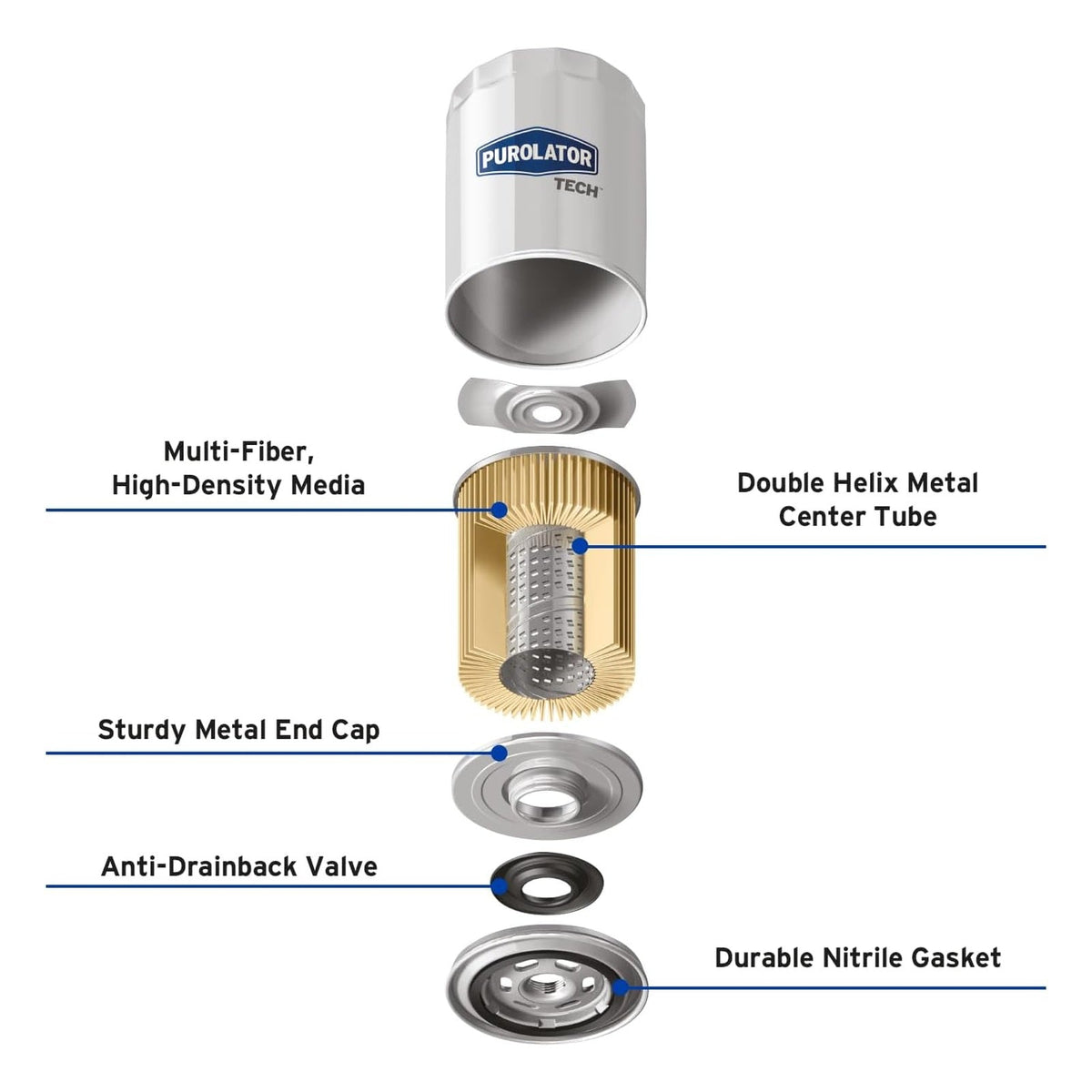

Purolator calls PurolatorTECH™ “the new standard in professional grade oil filters” — the line that goes on the shelf behind the counter. Purolator's own figures: 96.5% Dirt Removal Power™, multi-fiber high-density media, and a service life of “up to 5,000 miles, or as specified by OE.”
That mileage figure is the honest way to shop it. This is a cellulose-media filter for conventional and synthetic-blend intervals. If you run a 10,000–15,000 mile full-synthetic drain, buy a filter rated for that instead — we would rather say so than sell you twelve of the wrong thing.
Every row is carried by Purolator's own application list and at least one other filter maker's. Where they disagreed we left the row out.
| Model | Years | Engine |
| Ford | ||
| Focus | 2003–2018 | All |
| Fusion | 2006–2018 | 4-cylinder only |
| Escape | 2005–2018 | 4-cylinder only |
| Fiesta | 2011–2019 | All |
| C-Max | 2013–2018 | 2.0L hybrid |
| Edge | 2012–2018 | 2.0L EcoBoost only |
| Explorer | 2012–2018 | 2.0L / 2.3L EcoBoost only |
| Mustang | 2015–2019 | 2.3L EcoBoost only |
| Ranger / Bronco Sport / Maverick / Transit Connect | 2019–2024 | 2.0L / 2.3L EcoBoost |
| Lincoln / Mercury | ||
| MKC / MKZ / MKT | 2013–2019 | 2.0L / 2.3L EcoBoost |
| Mariner / Milan | 2005–2011 | 4-cylinder only |
| Mazda | ||
| Mazda3 | 2004–2013 | MZR 2.0L / 2.3L / 2.5L |
| Mazda5 | 2009–2017 | 2.3L / 2.5L |
| Mazda6 | 2009–2013 | 2.5L L4 |
| CX-7 | 2010–2012 | 2.5L |
| MX-5 Miata | 2006–2015 | 2.0L |
| Toyota / Lexus | ||
| 4Runner | 1996–2009 | V6 / V8 |
| Camry | 1988–2006 | V6 only |
| Avalon | 1995–2004 | 3.0L V6 |
| Highlander | 2001–2010 | V6 only |
| Land Cruiser / FJ Cruiser | 1996–2014 | V6 / V8 |
| Lexus ES / GS / LS / GX / LX / IS 300 | 1990–2010 | V6 / V8 |
| Chrysler / Dodge / Jeep | ||
| 2.2L / 2.5L cars and minivans | 1981–1990 | 2.2L / 2.5L |
| Neon / Cirrus / Breeze | 1995–2005 | 2.0L / 2.4L |
| Jeep Liberty | 2002–2005 | 2.4L |
| Other | ||
| Saab 900 / 9000 / 9-3 / 9-5 | 1990–2011 | L4 |
| Land Rover LR2 / Discovery Sport | 2013–2019 | 2.0L turbo |
Where a model came with both a four-cylinder and a V6, only the engine shown takes this filter. The other engine is almost always TL22500 or TL14610.
The part that stops you buying twelve of the wrong filter.
| Brand | Number |
| Purolator | L10241 / PL10241 / PBL10241 / TL10241 |
| FRAM | PH3614 |
| WIX | 51348 |
| NAPA Gold | 1348 |
| Motorcraft | FL-910S |
| Mobil 1 | M1-102A |
| Bosch | 3330 |
| K&N | HP-1002 |
| ACDelco | PF53 |
| Ford | FL-910S |
| Toyota / Lexus | 90915-20004, 90915-YZZD1 |
| Mazda | LF10-14-302, L321-14-302 |
Other manufacturers' part numbers are shown for identification and comparison only. We do not reprint another brand's dimensions or bypass pressure as Purolator's; the catalogues differ, and the number that matters is on the filter you are replacing.
We also stock PurolatorTECH TL14476 (Toyota), TL14612 and TL22500 as cases of 12. Call us at (626) 269-7689 if you are not sure which one your engine takes, or want a different count.
