Purolator

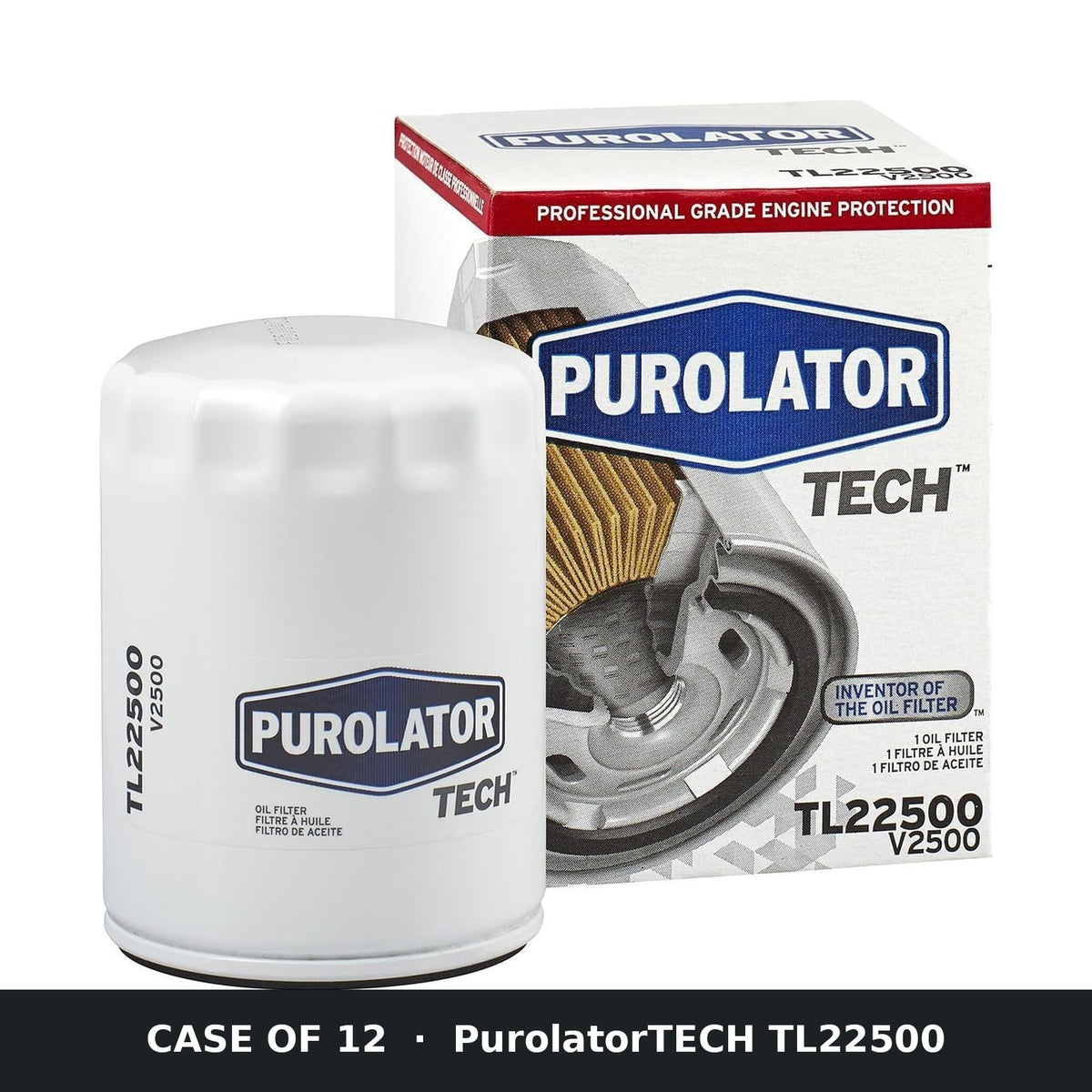

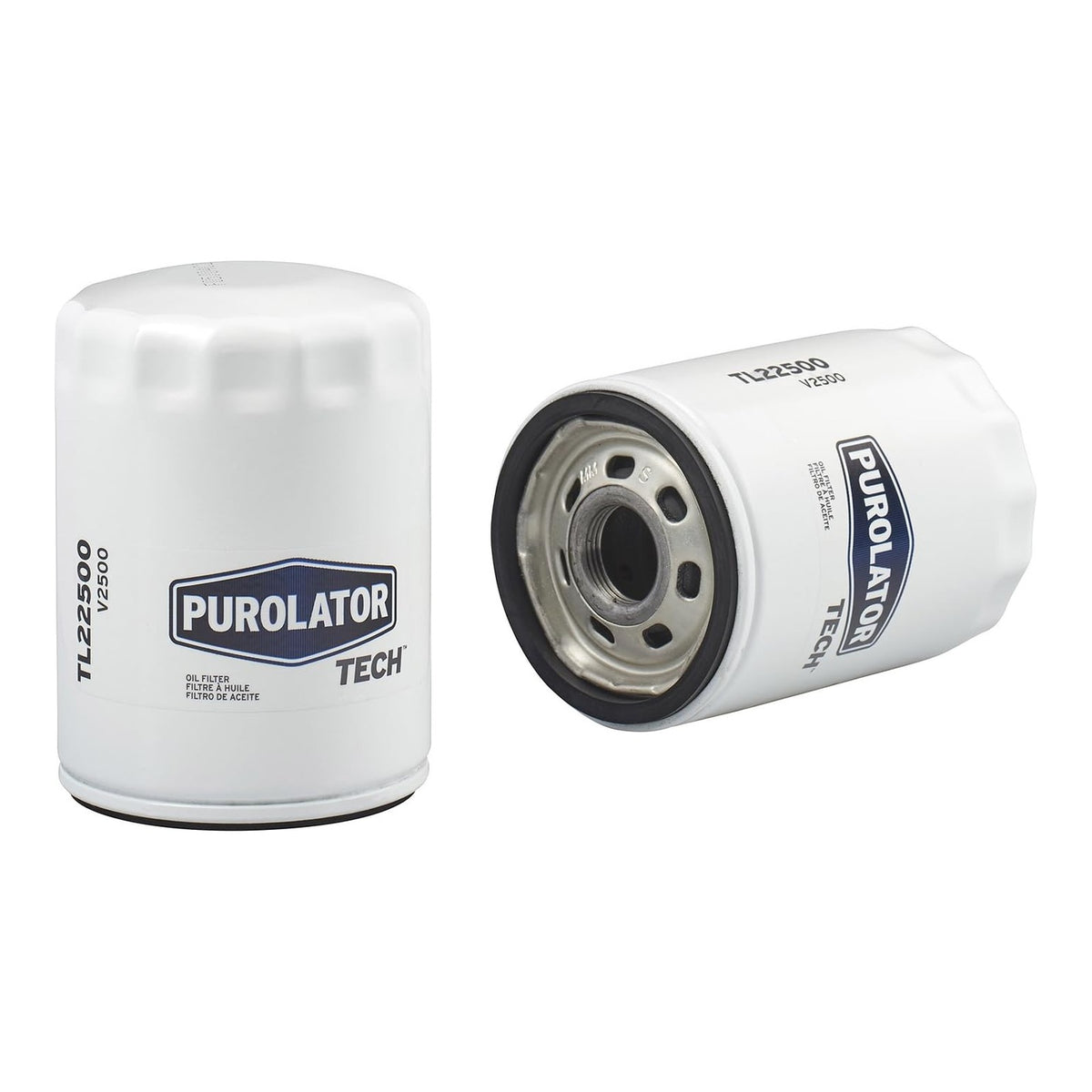

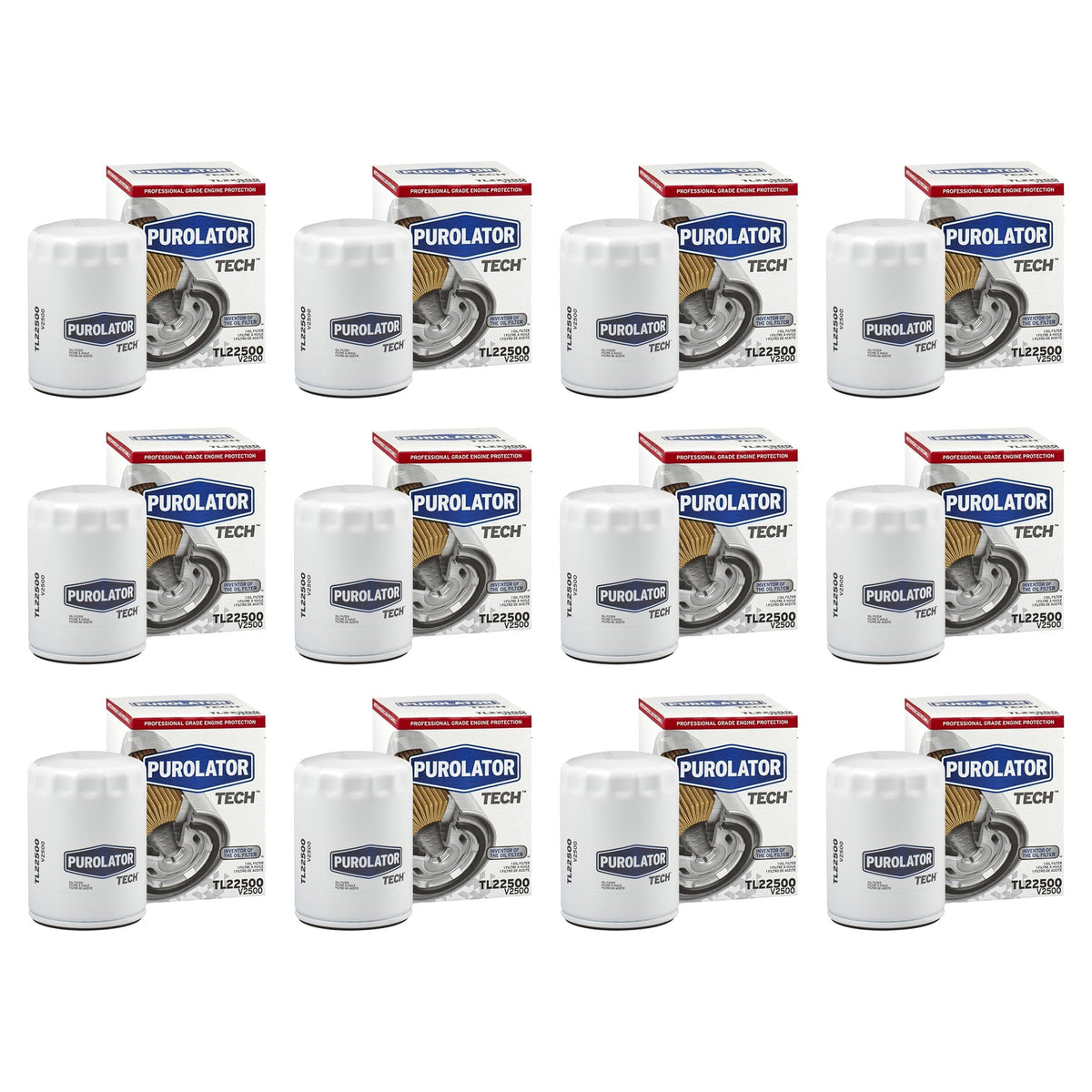

PurolatorTECH TL22500 Oil Filter, Replaces FL-500S PF63 - Ford F-150, Mustang, GM EcoTec3 - Case of 12
PurolatorTECH TL22500 Oil Filter, Replaces FL-500S PF63 - Ford F-150, Mustang, GM EcoTec3 - Case of 12
Pay by credit or debit card — no PayPal account needed.
Choose Pay with PayPal, then pick the debit or credit card option on the next screen. PayPal will offer to create an account at the end — you can decline it and your order still goes through.
Rather not order online? Call (626) 269-7689 and we will take your card over the phone.
Couldn't load pickup availability

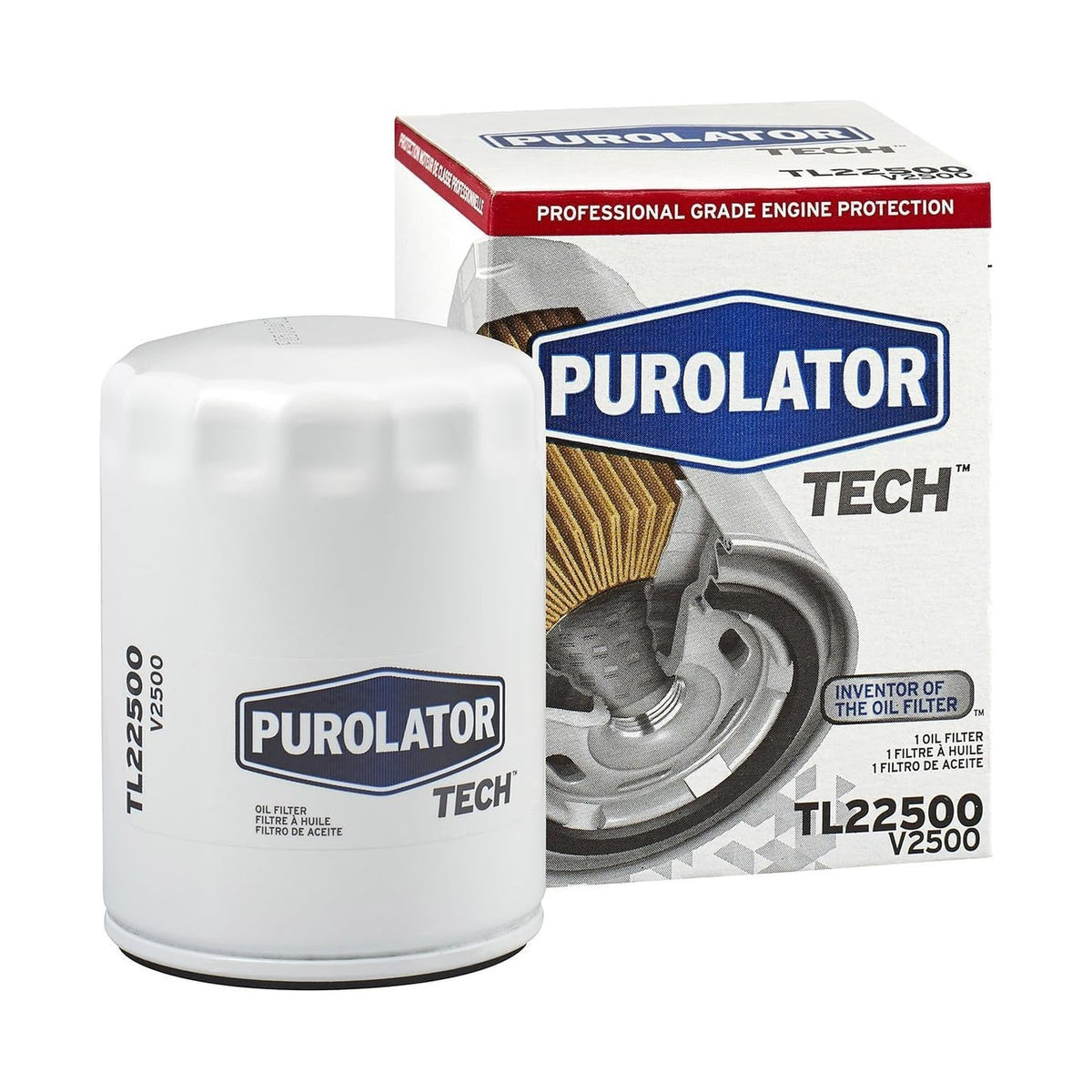

This is the Motorcraft FL-500S / ACDelco PF63 / FRAM PH10575 / WIX 57502 size — the 2011–2018 F-150 and Mustang, the 2014+ Silverado and Sierra, the GM 3.6L V6 crossovers and the 2009–2012 Chrysler 3.7L / 4.7L trucks. It has a 22 mm thread, so it will not screw onto the older 3/4-16 Fords or the LS-era GM trucks at all. That is the one thing that saves you here: the wrong one does not fit.

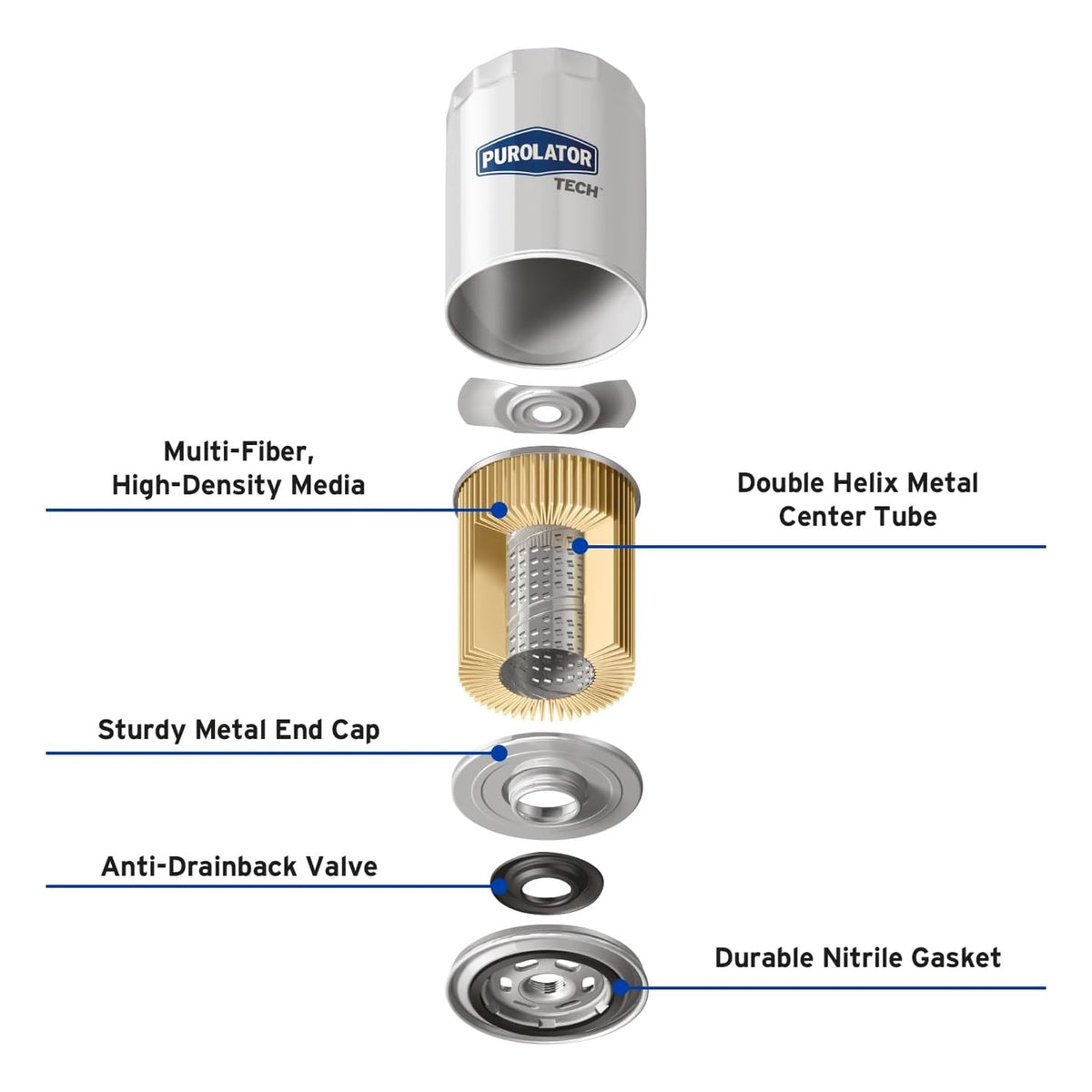

Purolator calls PurolatorTECH™ “the new standard in professional grade oil filters” — the line that goes on the shelf behind the counter. Purolator's own figures: 96.5% Dirt Removal Power™, multi-fiber high-density media, and a service life of “up to 5,000 miles, or as specified by OE.”
That mileage figure is the honest way to shop it. This is a cellulose-media filter for conventional and synthetic-blend intervals. If you run a 10,000–15,000 mile full-synthetic drain, buy a filter rated for that instead — we would rather say so than sell you twelve of the wrong thing.
Every row is carried by Purolator's own application list and at least one other filter maker's. Where they disagreed we left the row out.
| Model | Years | Engine |
| Ford | ||
| F-150 | 2011–2018 | 3.5L EcoBoost, 3.7L, 5.0L, 3.3L — not 2.7L EcoBoost |
| Mustang | 2011–2019 | V6 and 5.0L V8 |
| Explorer | 2011–2018 | V6 |
| Edge | 2009–2018 | V6 |
| Flex | 2009–2019 | V6 |
| Taurus | 2009–2018 | V6 |
| Fusion / Escape | 2009–2012 | V6 only |
| Expedition | 2015–2018 | 3.5L EcoBoost |
| Transit | 2015–2018 | 3.5L / 3.7L |
| Police Interceptor Sedan / Utility | 2013–2019 | V6 |
| Lincoln / Mercury | ||
| MKS / MKT / MKX / MKZ | 2009–2019 | V6 |
| Navigator | 2015–2018 | 3.5L EcoBoost |
| Sable / Mariner / Milan | 2009–2011 | V6 |
| Chevrolet / GMC | ||
| Silverado 1500 / Sierra 1500 | 2014–2018 | 4.3L, 5.3L, 6.2L EcoTec3 |
| Tahoe / Suburban / Yukon | 2015–2019 | 5.3L / 6.2L |
| Traverse / Acadia | 2011–2019 | 3.6L V6 |
| Equinox / Terrain | 2011–2017 | V6 only |
| Impala | 2012–2019 | 3.6L V6 |
| Camaro | 2016–2018 | 3.6L V6 / 6.2L V8 |
| Express / Savana | 2018 | 4.3L / 6.0L |
| Buick / Cadillac | ||
| LaCrosse / Enclave | 2011–2019 | 3.6L V6 |
| Escalade | 2015–2019 | 6.2L |
| SRX / XTS / XT5 | 2010–2019 | 3.6L V6 |
| CTS / ATS / CT6 | 2012–2019 | 3.6L only |
| Chrysler / Dodge / Jeep | ||
| Ram 1500 | 2009–2012 | 3.7L / 4.7L only |
| Dakota / Durango | 2009–2011 | 3.7L / 4.7L |
| Jeep Liberty / Nitro | 2009–2012 | 3.7L |
| Grand Cherokee / Commander | 2009–2010 | 3.7L / 4.7L |
Engine matters more than model on this one. The same truck often came with an engine that takes a cartridge or a different can — see the exclusions.
The part that stops you buying twelve of the wrong filter.
| Brand | Number |
| Purolator | L22500 / PL22500 / PBL22500 / TL22500 |
| Motorcraft | FL-500S |
| ACDelco | PF63, PF63E |
| FRAM | PH10575 |
| WIX | 57502 |
| NAPA Gold | 7502 |
| Mobil 1 | M1-212A |
| K&N | HP-2011 |
| Mopar | 5184231AA |
| Ford | FL-500S |
| GM | PF63 / 12640445 |
| Chrysler | 5184231AA |
Other manufacturers' part numbers are shown for identification and comparison only. We do not reprint another brand's dimensions or bypass pressure as Purolator's; the catalogues differ, and the number that matters is on the filter you are replacing.
We also stock PurolatorTECH TL14476 (Toyota), TL14612 and TL10241 as cases of 12. Call us at (626) 269-7689 if you are not sure which one your engine takes, or want a different count.
