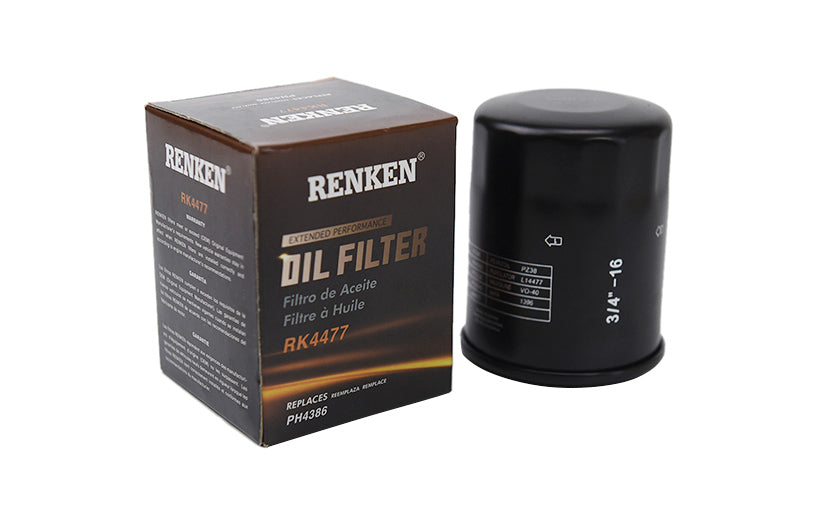

RENKEN RK4477 Oil Filter, Replaces PH4386 - Toyota Camry 2.4, RAV4 2.4 - Case of 12
RENKEN RK4477 Oil Filter, Replaces PH4386 - Toyota Camry 2.4, RAV4 2.4 - Case of 12
Pay by credit or debit card — no PayPal account needed.
Choose Pay with PayPal, then pick the debit or credit card option on the next screen. PayPal will offer to create an account at the end — you can decline it and your order still goes through.
Rather not order online? Call (626) 378-7212 and we will take your card over the phone.
Couldn't load pickup availability
It is not the filter for 2005-2021 Tacoma, 4Runner, Tundra or Sequoia V6 / V8. Neither FRAM nor WIX lists those trucks for this number.
What it is
RK4477 crosses to FRAM PH4386, Purolator L14477 and WIX 57145. That is the taller 3/4-16 Toyota can catalogued for the 2.4L 2AZ-FE cars, the Suzuki four-cylinders and the 2022+ 3.4L twin-turbo trucks.
Confirmed by two filter makers' published specs: Thread 3/4-16 UNF, anti-drainback valve. We leave out any dimension the catalogues disagree on, rather than guess.
Vehicle compatibility
Every row below is listed for this filter by two or more independent filter makers' catalogues. Where the catalogues disagreed, we used only the years they share or left the row out.
| Model | Years | Engine |
| Toyota | ||
| Camry | 2002–2009 (gas); 2007–2011 (Hybrid) | 2.4L L4 only |
| Camry Solara | 2002–2008 | 2.4L L4 |
| Highlander | 2002–2007 | 2.4L L4 only |
| RAV4 | 2004–2008 | 2.4L L4 |
| Matrix | 2009–2013 | 2.4L L4 |
| Corolla XRS | 2009–2010 | 2.4L L4 |
| Corolla GTS | 1988–1991 | 1.6L L4 twin-cam |
| Celica All-Trac / GT-S All-Trac | 1990–1993 | 2.0L L4 turbo |
| Celica GT-S | 2000–2001 | 1.8L L4 |
| MR2 | 1988–1989, 1991–1995 | 1988-89: 1.6L; 1991-95: 2.0L Turbo; 1995 2.2L base |
| Tundra | 2022–2024 | 3.4L twin-turbo V6, incl. i-FORCE MAX hybrid |
| Sequoia | 2023–2025 | 3.4L twin-turbo V6 hybrid |
| Lexus | ||
| GX550 | 2024–2025 | 3.4L twin-turbo V6 |
| LS500 | 2018–2021 | 3.4L twin-turbo V6 |
| LX600 | 2022–2024 | 3.4L twin-turbo V6 |
| Scion | ||
| xB | 2009–2015 | 2.4L L4 |
| Pontiac | ||
| Vibe GT | 2005–2006 | 1.8L L4 |
| Chevrolet | ||
| Tracker | 1999–2003 | 2.0L L4 |
| Nova Twin Cam | 1988 | 1.6L L4 |
| Geo | ||
| Prizm | 1990–1992 | — |
| Suzuki | ||
| Aerio | 2002–2007 | 2.0L L4 2002-2003; 2.3L L4 2004-2007 |
| Esteem | 1999–2002 | 1.8L L4 |
| Sidekick | 1996–1998 | 1.8L L4 |
| Vitara | 1999–2003 | 2.0L L4 |
Car not listed? Call (626) 378-7212 or message us with the year, model and engine and we will look it up for you, rather than guess.
What this filter does not fit
This is the part that stops you buying twelve of the wrong filter.
Cross-reference
| Brand | Number |
| RENKEN | RK4477 |
| FRAM | PH4386 |
| Purolator | L14477 / PL14477 / PBL14477 / TL14477 / PSL14477 |
| WIX | 57145, 57145XP; gives 51389, 57530 |
| NAPA Gold | 7145 |
| Bosch | 3311, D3311 |
| K&N | HP-1003, PS-1003 |
| Mobil 1 | M1-103, M1-103A |
| ACDelco | PF53 |
| Hastings | LF308, LF308F, LF413 |
| Baldwin | B1406, B7119 |
| Mann | W610/80, W610/83 |
| Mahle | OC217, OC1042 |
| Denso | 150-2000, 150-1015 |
OEM numbers this replaces
| Toyota | 90915-10010, 90915-10004, 15600-01020, 90915-10002, 90915-03004, 90915-YZZA2, 90915-YZZE2, 90915-YZZF1 |
| Suzuki | 16510-61A21, 16510-61A00/01/02/20/31, 16510-82703, 16510-93J00 |
| GM | 88969580, 94845246, 94848478, 91176161 |
| Nissan | 15208-53J00 |
| Daihatsu | 15601-87705-000 |
Packing and delivery
- Twelve new RENKEN RK4477 filters, individually boxed, in one case
- Ships from our own warehouse in Azusa, California
- Free shipping to the lower 48 states
- Questions? Call (626) 378-7212
